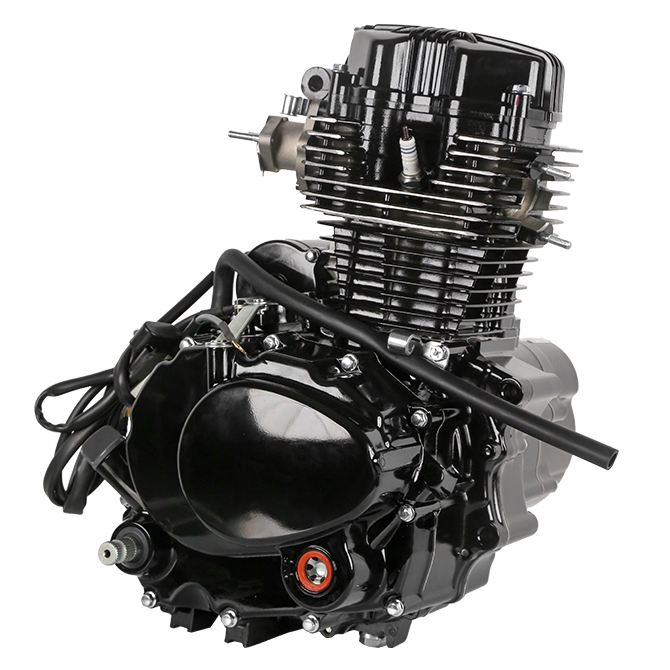

 Single-cylinder, four-stroke, air-cooled, electric/kick starting engine.

 Cylinder head adopts bimetal, stable iron core, good sound.

 With a large variable speed drum structure, the shift has good smoothness and strong sense of position.

 The engine parts are very commonality, high interchangeability and easy maintenance.

 Magnetic oil drain bolt of oil pan to extend the engine service life.

 DLC piston ring to improve the wear resistance of parts.

 The top of the piston is coated with pottery, good heat resistance, the piston skirt is sprayed with graphite, good wear resistance.

 Using piston back cooling technology, forced lubrication and cooling piston and piston ring, reduce engine heat load.

 The gear adopts the modified state to improve the pitting resistance.

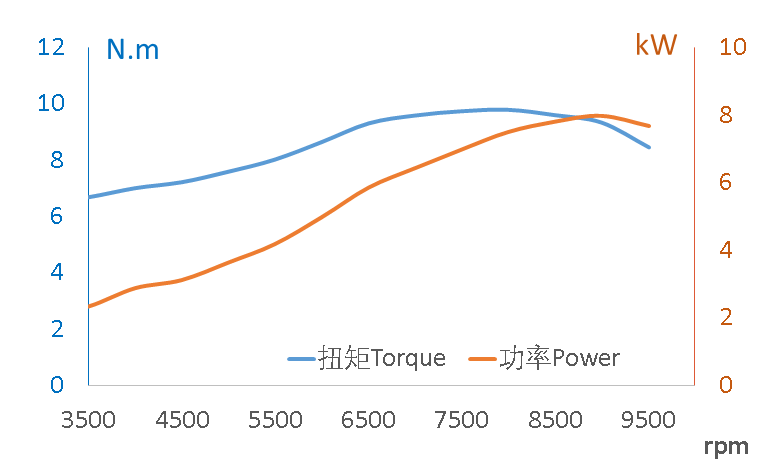

WIDE OPEN THROTTLE CURVES

INSTALLATION DIMENSIONS
