● Single cylinder, four stroke, water cooled, electric starting engine.

● The technology of double overhead camshaft tappet valve drive simplifies the valve drive mechanism and reduces the transmission inertia of the valve mechanism.

● The two-stage filtration lubrication technology is adopted to optimize the oil passage, and the combination of external tubing and external fine filter has good filtration effect and easy maintenance.

● With built-in balance shaft, equipped with anti-backlash counter gear transmission, to ensure the vibration of the whole engine, balance shaft gear noise is small.

● The all-aluminum nickel plating cylinder block technology to improve the wear resistance and corrosion resistance of the cylinder block and reduce the weight of the cylinder block.

● The valve is driven by adjusting gasket instead of adjusting screw. The point contact is replaced by line contact. The wear is less, the valve clearance changes less, and the valve clearance maintenance is reduced.

● Double tensioning mechanism technology, smooth transmission, soft sound quality.

● The manual starting device is equipped to meet the engine starting requirements under extreme conditions.

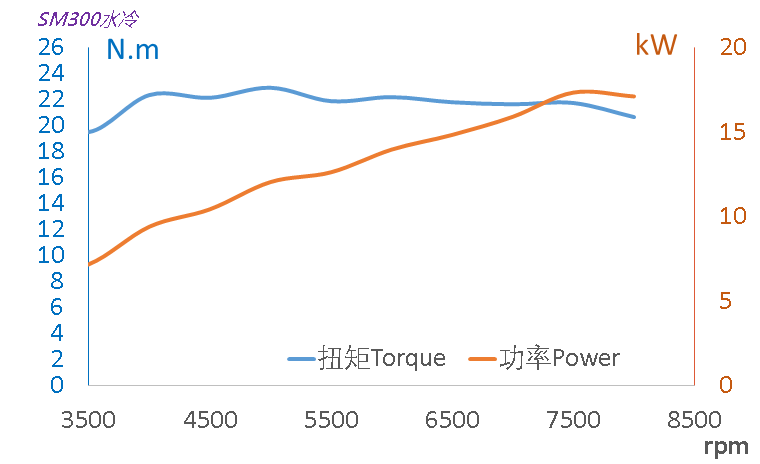

WIDE OPEN THROTTLE CURVES

INSTALLATION DIMENSIONS
