 Single cylinder, four stroke, water cooled, electric start engine.

 Through combustion analysis, optimization of S/D ratio, ignition curve, to ensure more full combustion, performance is improved by 8-10% compared with similar products, and effectively reduce overrunning clutch failure.

 Using centrifugal cylinder liner technology, the contact area between cylinder liner and aluminum alloy is increased by 1.5 times, and the strength and life are increased by 2 times.

 The use of double PVD piston ring, hardness increased by 30%, improve wear resistance, effectively reduce the burning oil, oil consumption phenomenon.

 External kick starting structure, completely solve the market pain points (copper sleeve wear).

 Carbon fiber friction plate + platen embedded steel plate structure, the impact times against the wall increased by 2 times.

 Using large capacity multistage filtration technology, improve the purification capacity by 70%, and increase the life by 2 times.

 Waterway optimization + large water pump + large water pipe structure, the flow rate increased by 60%.

 The use of two sides of the oil discharge structure, easier maintenance.

 The counter shaft bearing is strengthened, the outer diameter is increased to φ33, and the service life is increased by 35%.

 Strengthened counter shaft bearing, outer diameter increased to φ33, life increased by 35%.

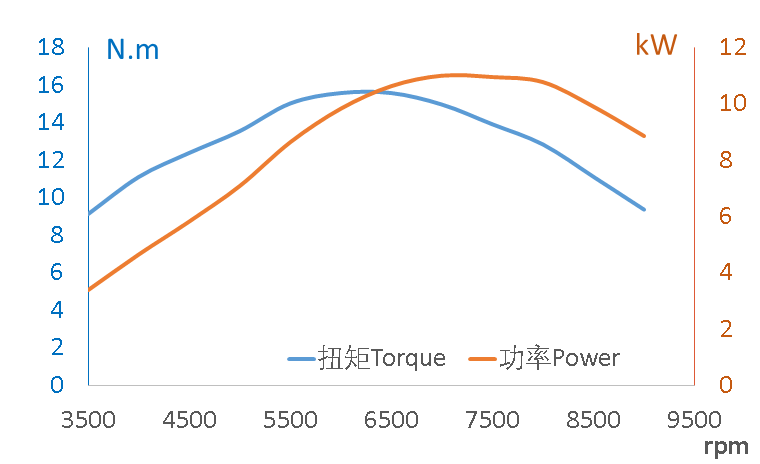

WIDE OPEN THROTTLE CURVES(TT210A水冷)

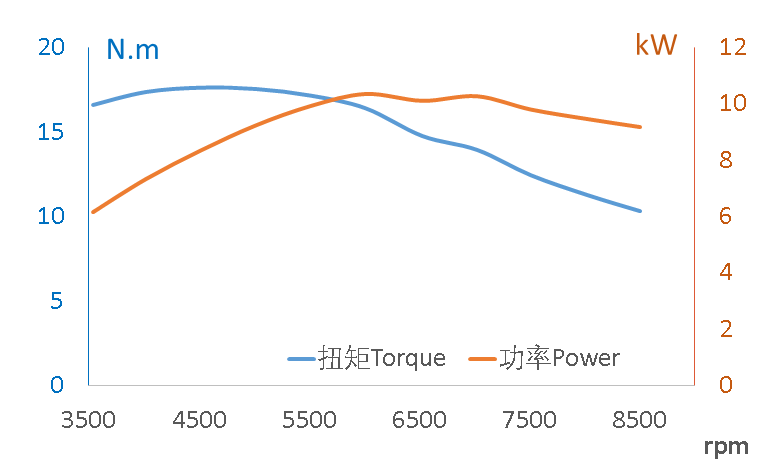

WIDE OPEN THROTTLE CURVES(TT260A水冷)

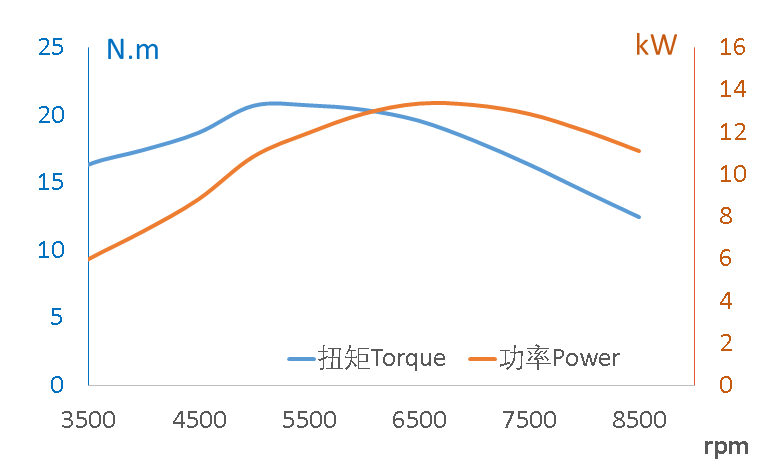

WIDE OPEN THROTTLE CURVES(TT300A水冷)

 INSTALLATION DIMENSIONS
