Motocycle Engine

Features
Technical Details

● Single-cylinder, four-stroke, air-cooled, electric/kick start, low noise, easy to start.

● With C100 special box and unique large cylinder head shape, compact structure, full combustion, and unique unidirectional camshaft structure, the starting performance is instant.

● Double clutch structure, smooth operation, improve the driving comfort.

● The lubricating oil adopts coarse and fine filtration to ensure the cleanliness of the lubricating oil and extend the life of the engine.

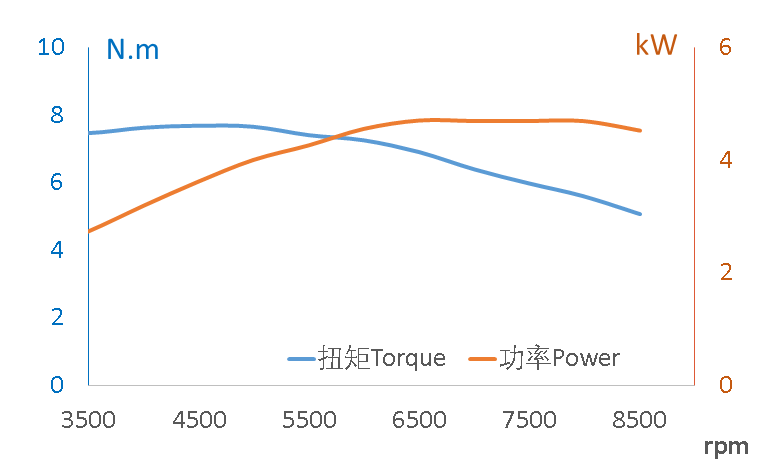

WIDE OPEN THROTTLE CURVES (C110)

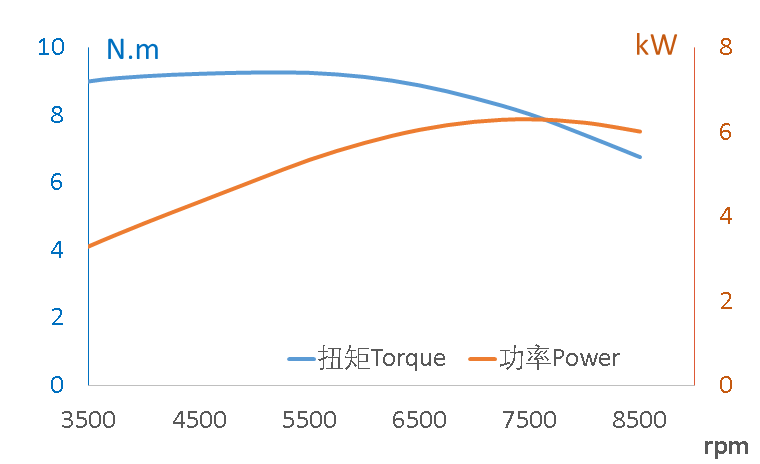

WIDE OPEN THROTTLE CURVES (C125)

INSTALLATION DIMENSIONS

Tel：400 636 9980 Add：No.116 Juye road，C area of Jiulong industrial park， Jiulongpo district，Chongqing, China E-mail：Engine_loncin@sina.com Fax：86 23 8669 3433

ENGINE NAME	C110
ENGINE TYPE	single cylinder,4-stroke,air-cooling,SOHC,two-valve
DISPLACEMENT(ml)	107
NET WEIGHT(kg)	21
MAX.POWER(kW/rpm)	4.7/8000
MAX.TORQUE(N·m/rpm)	6.8/5500
COMPRESSION RATIO	9.1 ：1
BORE & STROKE(mm×mm)	52.4×49.5
FUELINJECTION METHOD	CARBURETOR
GEARSHIFT METHOD	N-1-2-3-4-N

ENGINE NAME	C125
ENGINE TYPE	single cylinder,4-stroke,air-cooling,SOHC,two-valve
DISPLACEMENT(ml)	123.7
NET WEIGHT(kg)	21
MAX.POWER(kW/rpm)	5.8/7500
MAX.TORQUE(N·m/rpm)	9.2/5500
COMPRESSION RATIO	9.2 ：1
BORE & STROKE(mm×mm)	54×54
FUELINJECTION METHOD	CARBURETOR
GEARSHIFT METHOD	C100挡
