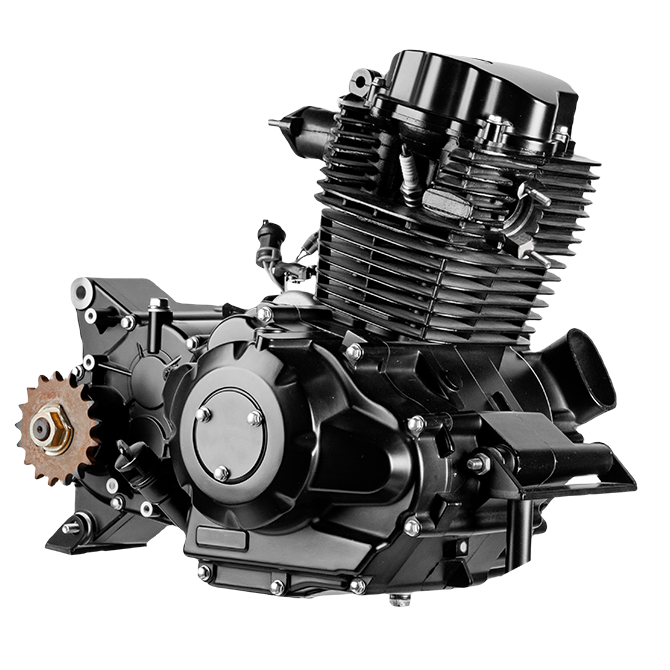

Motocycle Engine

Features
Technical Details

● Designed for ATV conditions; good performance for low speed.

● CVT, large variable speed range, simple and convenient operation.

● Imported CVT belt, durable.

● Using the built-in reverse gear device, only by manipulating the engine speed board, you can easily achieve the forward and backward of the vehicle, which is more simple and convenient to use.

● The balance shaft structure makes the engine run smoothly, reduces vibration, and effectively improves riding comfort.

● The toothed timing chain is adopted to reduce noise and improve transmission efficiency.

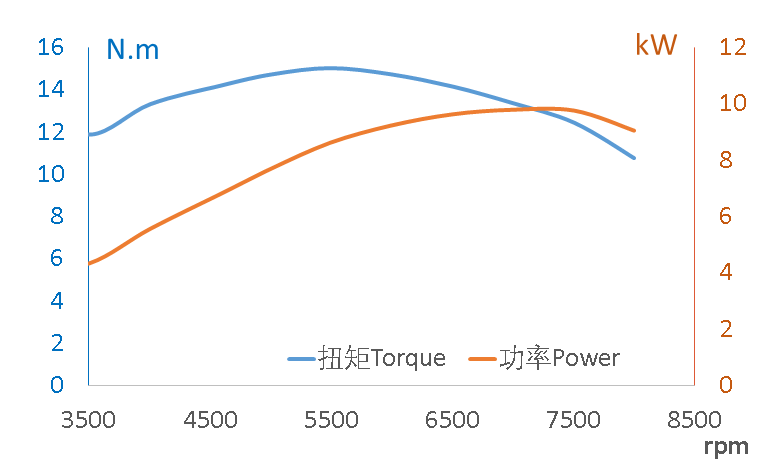

WIDE OPEN THROTTLE CURVES （CVT200）

INSTALLATION DIMENSIONS

Tel：400 636 9980 Add：No.116 Juye road，C area of Jiulong industrial park， Jiulongpo district，Chongqing, China E-mail：Engine_loncin@sina.com Fax：86 23 8669 3433

ENGINE NAME	CVT175
ENGINE TYPE	single cylinder,4-stroke,air-cooling,SOHC,two-valve
DISPLACEMENT(ml)	176
NET WEIGHT(kg)	39
MAX.POWER(kW/rpm)	9.2/8000
MAX.TORQUE(N·m/rpm)	13.7/6000
COMPRESSION RATIO	9 ：1
BORE & STROKE(mm×mm)	62×58.4
FUELINJECTION METHOD	CARBURETOR
GEARSHIFT METHOD	CVT

ENGINE NAME	CVT200
ENGINE TYPE	single cylinder,4-stroke,air-cooling,SOHC,two-valve
DISPLACEMENT(ml)	196.2
NET WEIGHT(kg)	39.5
MAX.POWER(kW/rpm)	10/7000
MAX.TORQUE(N·m/rpm)	15/5500
COMPRESSION RATIO	9.3 ：1
BORE & STROKE(mm×mm)	63.5×62
FUELINJECTION METHOD	CARBURETOR
GEARSHIFT METHOD	CVT
