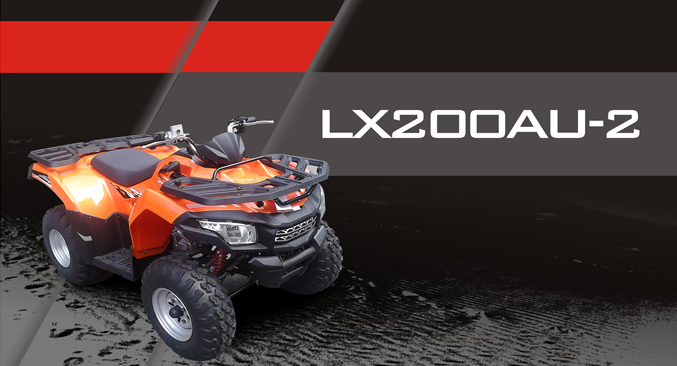

LX200AU
ENGINE：CVT200 176cc
SUKER
ENGINE：TD210 201.9cc
The vehicle have done much optimal design, such as CAE and structure optimization. The vehicle weight reduce about 20kg. But the strength become better. Appearance is more fashionable and beautiful.
Excellent design, Fashional Modelling，and the arrangement of the pipe is high, the tightness is good.
Front suspension is double A-arm type. The stiffness of front shock absorber can be adjusted.
Oversized travel: Front suspension is 150mm, rear suspension is 150mm.

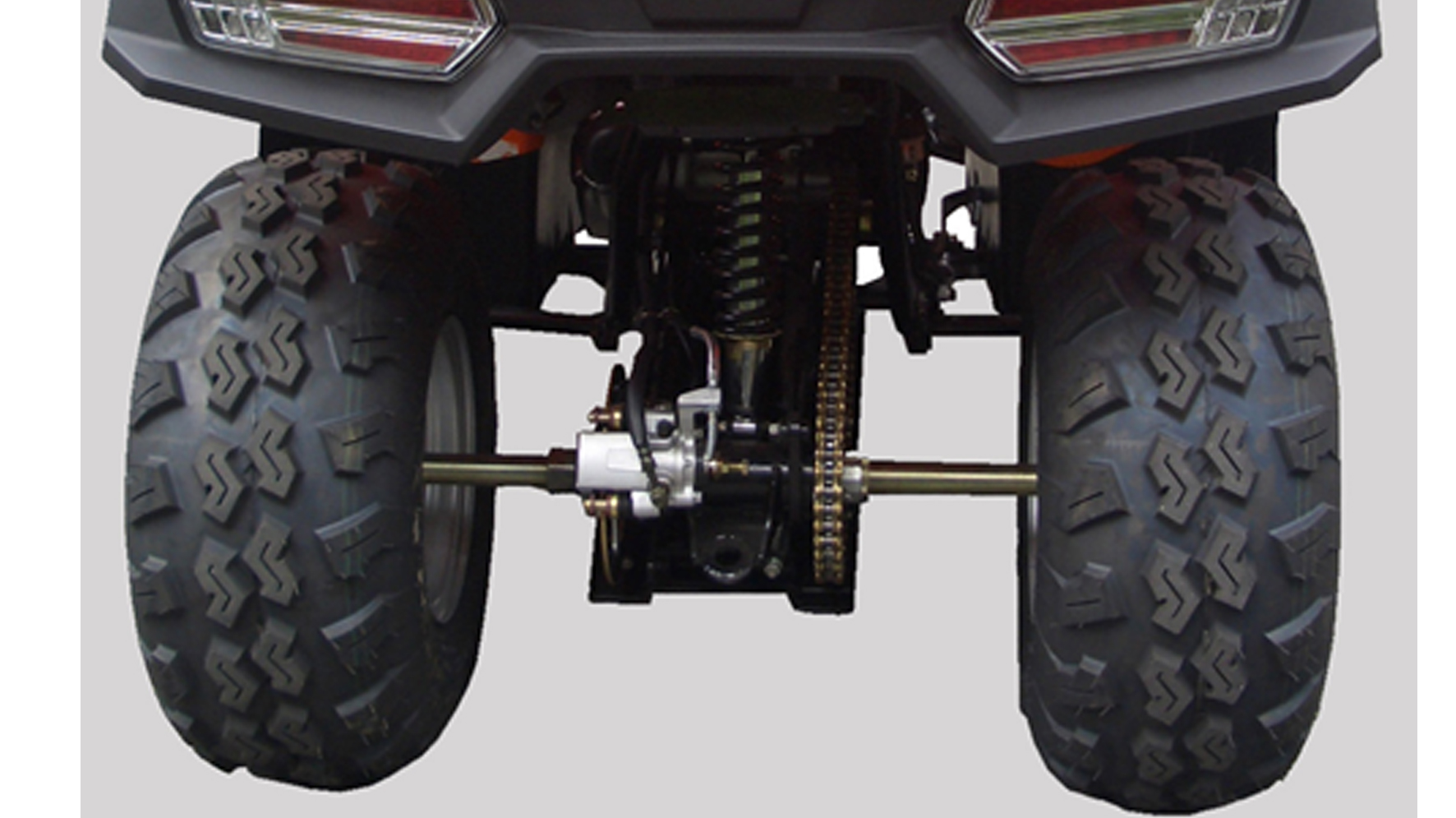

The chain length can be adjusted conveniently. you may chose the trailer ball. The guard board of rear axle with the chain guidance can prevent to fall off.
Engine type
LC162FMK-2
Displacement
176 cc
Bore × Stroke（mm)
62x58.5mm
Starting method
Electric starter
Ignition system
CDI
Fuel supply system
Carburetor
Lubrication system
Wet Sump
Gearshift
CVT
Compression Ratio
9.7:1
Max. Power(kw/rpm)
9/8000
Max. Torque(N•m/rpm)
13/6000
Min. Fuel Consumption(g/kw•h)
354
Min. stable unladen speed
1600±100 rpm
Overall size (L×W×H)
1800mm×1020mm×1090mm
Wheelbase
1140 mm
Minimum turning radius
2300 mm
Seat height
780 mm
Maximum loading limit
125 kg
Transmission system
Final transmission
chain drive
Fuel tank capacity
9 L
Idle speed
1600 rpm
Front/Rear shock absorbing type
Coil spring/gas-oil damper
Front/Rear suspension type
Double A-arm
Front headlight
12V 35/5W×2
Ground clearance
165 mm
Weight with oil and fuel
190 kg
Brake type (Front/Rear)
Dual disc brake
Parking brake
Hand brake
Front tire size
21×7-10
Rear tire size
22×10-10
Maximum speed
65 km/h
Battery
12V 9Ah
