LX700UTV-3 UTV700-3
  • Overview
  • Features
  • Technical Details
  • Gallery and Media

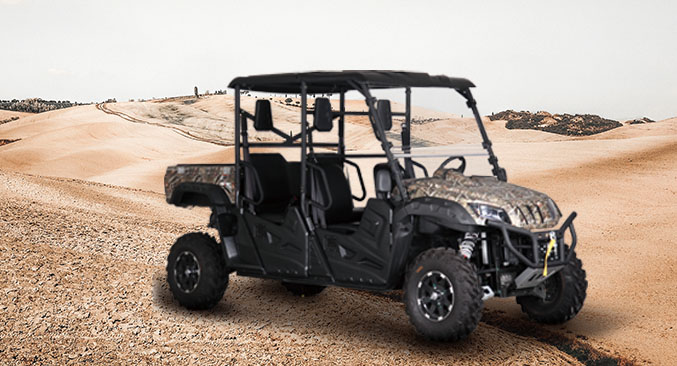

Liquid cooling CVT700 with reversal gear engine, EFI, Digital speedometer, Alloy wheel, Tubeless tyre, Fr. & Rr. disk brake, 2WD/4WD, Winch, Steering wheel, Roof, Pillow, Windshield, Guide door, Rr. cargo bed capacity. four seats。

Electric Power Steering

 MC7L series can be Option with EPS , provide excellent maneuverability on a variety of terrains, with reduced fatigue for long driving in the field

Delphi Fuel

  Electronic fuel injection ensures peak performance in nearly all conditions and elevations, along with instantaneous cold starts and smooth response.can meet the requirements of EPA and CARB emission standards.

Torquey 700-Class Engine

MC7L series with powerful 686CC, liquid cooling, Delphi electronic fuel injection, SOHC. Provides strong, smooth and efficient power to the vehicle. The engine has excellent low-grade acceleration performance, and can provide powerful power in the speed range, in order to complete the task in a variety of road conditions.

Air intake system

MC7L will air intake hidden in the cargo box, rear isolation cover, back to form a labyrinth. The air inlet foam filter and the paper filter of the air filter form a two-stage filter system, and the air intake design of the air filter can effectively improve the utilization ratio of the paper filter. Air inlet labyrinth foam filter circulating air, high-quality paper filter will provide clean and sufficient air for the engine.

2WD/4WD/4WD-Lock

MC7L series with  three-position 4WD system lets you quickly dial between 2WD, limited-slip 4WD and fully locked differential 4WD. To provide more excellent off-road experience。

Outstanding cross-country through capacity

 MC7L series with Double A - arm, Before and after the double stabilizer bar with the, .In addition, elaborate design provides Front 174mm,Rear 254 mm suspension travel, excellent for the driver to a safe and comfortable driving experience,To help the driver to remove the difficulties and obstacles in front of.

Strong and practical to Cargo Bed

 The MC7L series models are made of all-metal pattern bottom plate, which can flip the cargo box, strengthen the design of high alloy steel frame, and ensure that the goods are bound safely by the professional cargo box lock. When needed, the container can also be unlocked and flipped from one side. The center of gravity of cargo box is lower and safer, and the lower position of cargo door is easier and more convenient and more humanized.

Electric Power Steering

 MC7L series can be Option with EPS , provide excellent maneuverability on a variety of terrains, with reduced fatigue for long driving in the field

Seats

 MC7L meets SAE standards for ergonomics design. The main seat has a 100 mm forward and backward adjustment stroke, which is more conducive to different height of the driver to control the vehicle. The rear seat is designed as a whole, providing members with wide space.

Engine post design

 MC7L adopts post-launch technology to provide better heat dissipation space for launching. The muffler with high heat load is arranged horizontally with the rear end of the frame to reduce the heat load of the engine bin, make rational use of engine space, and design a cooling fan for continuous cooling of the engine exhaust port. These measures can effectively reduce the cockpit heat load and improve the reliability of the engine.

Paint bumper

MC7L Series provide metal grain bumper protection before and aluminum alloy plate of the lacquer that bake, overall modelling beautiful, good effect in actual collision avoidance, suspension is equipped with four other aluminium alloy protection board, provides the suspension in various harsh environment protection in all aspects

LED Overhead light

 Model : SG-LS180D

Size:864.2×114×86.5mm

Weight:  2.87kg

Features : High-power LED lamp beads, lighting effect is good ,60 light beads, 180W lamp, 31.5 inches

MC7L



Engine

Engine Type

686cc liquid-cooled SOHC 4-stroke; 4 valves

Cooling

Oil and Water Cooled combine

Bore X Stroke

102.00 X 84.00 mm

Compression Ratio

9.7:1

Horse Power

43HP (32KW)

Max Torque

549 lb.in(62 N.m)

Ignition Type

EFI(electronic fuel injection)

Starter System

Electric

Transmission

Automatic CVT L/H/N/R/P; Shaft

Drive System Type

2WD/4WD/ locked 4WD; shaft

Chassis

Front Suspension

Double A-arm

FRONT SUSPENSION TRAVEL

197mm

Rear Suspension

Double A-arm

REAR SUSPENSION TRAVEL

250mm

Front

Dual 200mm ventilated disc brakes

Rerar

Dual 180mm ventilated disc brakes

Tires / Front

AT26x 9-12 /Aluminum Wheels

Tires / Rear

AT26x 10-12 /Aluminum Wheels

L x W x H

146.9×61.2×78.15in( 3732×1555×1985mm)

Wheelbase

108.3(2750)

Turning Radius

270.5in (6.87m)

Ground Clearance

12.2 in(310mm)

Fuel Capacity

7.4 gallon  ( 28L )

Curb weight

1642.4 lbs (745kg)

Person Capacity

4

Rack Capacity

400 lbs

Towing Capacity

1500 lbs

Pack

Package size

145.7x66.9x98.4 in
(3700x1700x2500)

Container QTY

6pcs (40GP)

Features

Front winch

2500 lbs

Radio

Double speaker radio, MP3, bluetooth, with TIF expansion card

Side Mirror

Adjustable side mirror

Power-assisted steering

/ (NO)
