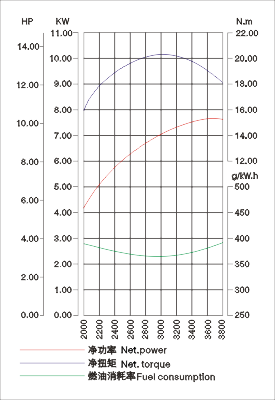

- Curve graph

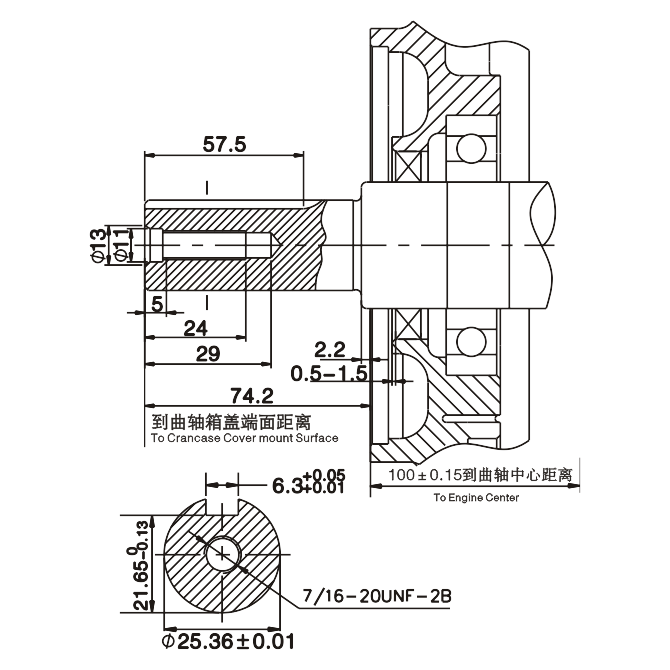

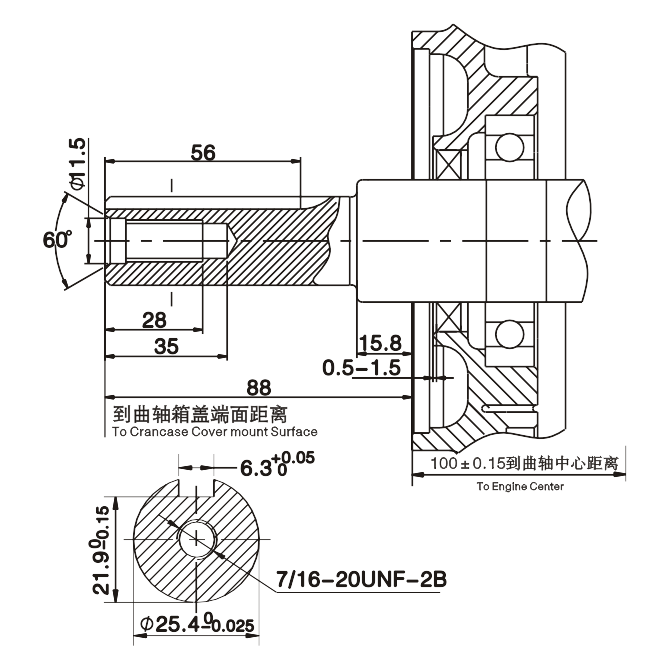

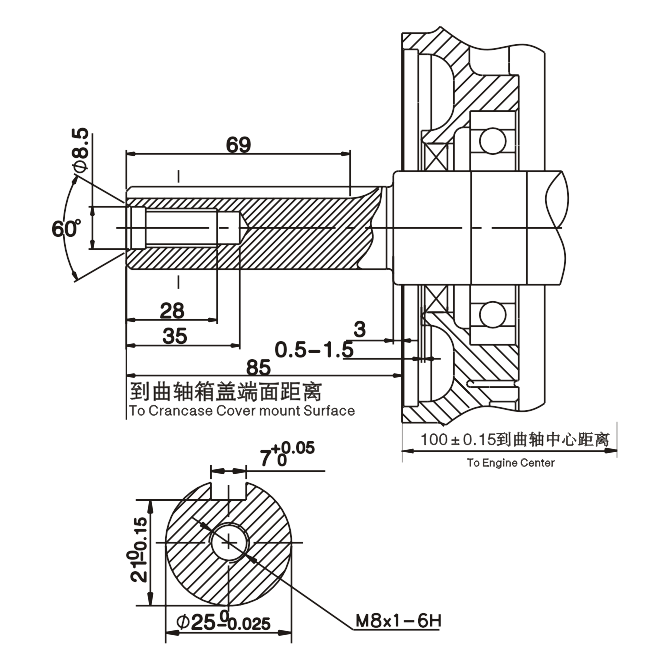

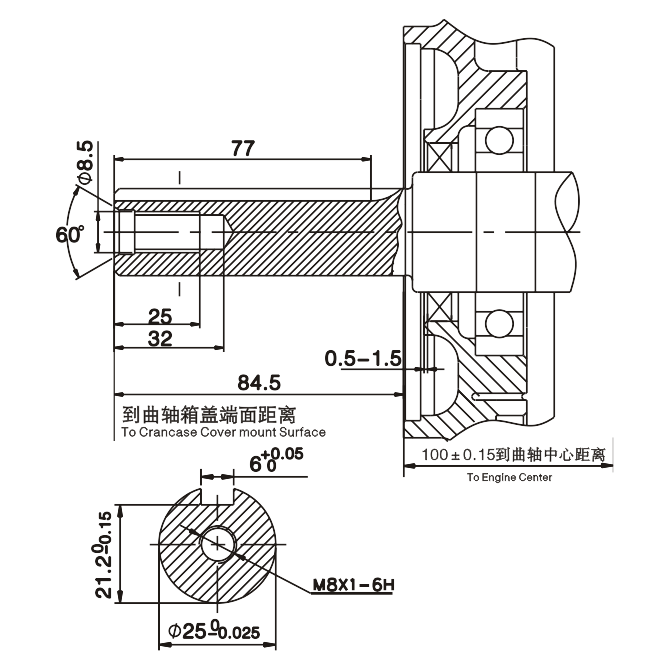

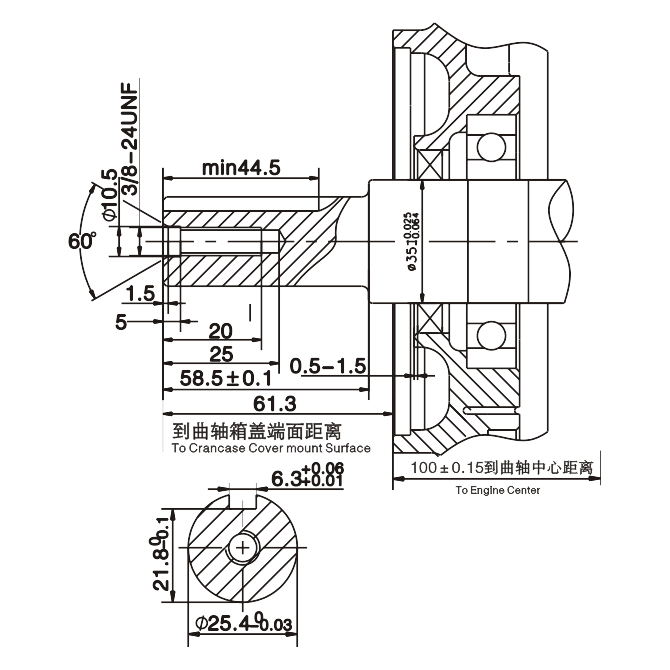

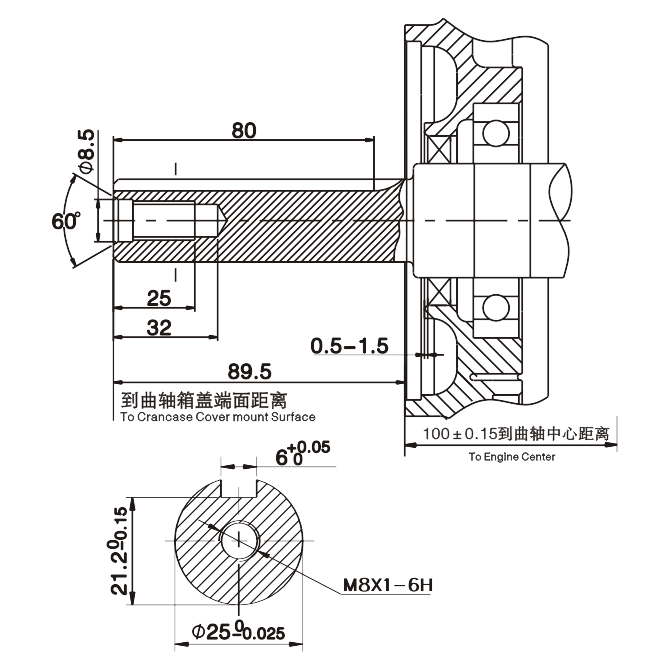

- P.T.O Shaft Options

• Primer system provides certain fuel for easy cold start.
• The use of strengthened low temperature proof material makes engine work reliably in low-temperature environment.
• Special enclosure shroud for snow engine protects block, starter and high-risk electric parts from melted snow.
• Extended oil-add pipe for convenient oil fill.
• Overhead valve (OHV)design, low running temperature, stronger power, more reliable and durable and fuel effectiveness for engine.
• Cast iron sleeve not only improves lubrication, but also makes engine more wear-resistant and prolongs engine life.
• Automatic oil alarm stops engine at low oil level, gives engine more protection.
• Metal cam and forged crankshaft makes engine more reliable and durable.
• Meet with EPA III and CARB Standard.
| Mode | LC185FDS |
| Engine type |
Single cylinder,4stroke, forced cooling ,OHV25°inclined |
| Displacement |
375cc
|
| Bore×Stroke | 85mm×66mm |
| Net power | 7.8kW/3600rpm |
| Net torque | 23.2N.m/2500rpm |
| Idle speed | 1600±150r/min |
| Compression ratio | 8.2∶1 |
| PTO shaft rotation | Anti-clockwise(from PTO side) |
| Noise | ≤70B(A) |
| Ignition system | Transistorized magneto ignition |
| Starting system | Recoil start/Electic-start |
| Lubrication system |
Splash
|
| Governor system | Centrifugal mass type |
| Oil capacity | 1.1L |
| Fuel tank capcity | 5.5L |
| Net weight | 34kg/36kg |
|

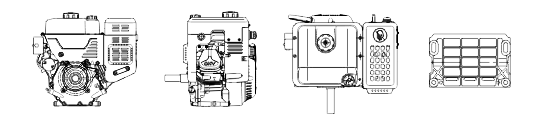

Dimension
|
510×380×450 |
