Home > Product > CLASSIC >
Color

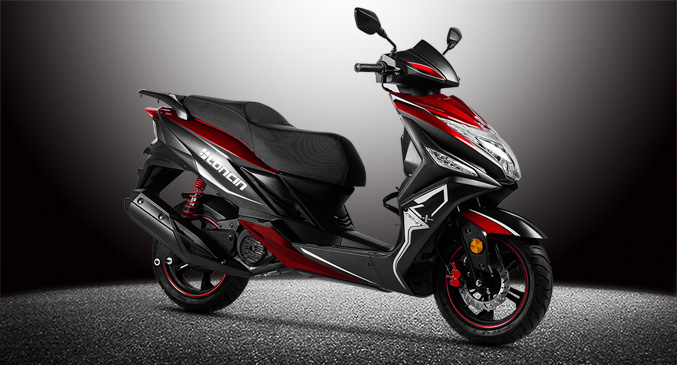

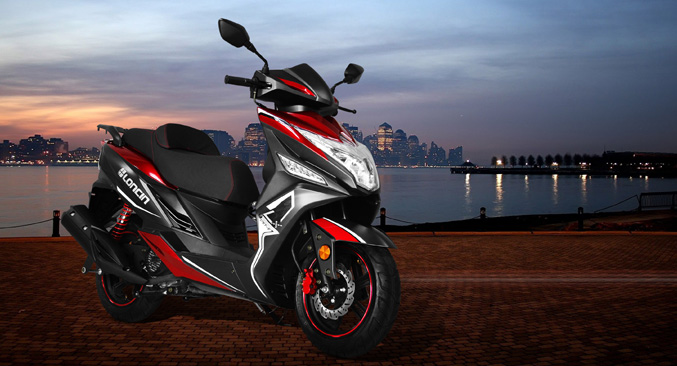

LX175T-5 AC1
  • Overview
  • Features
  • Technical Details
  • Gallery and Media

Configuration:

GY175 engine, E-start & Kick, Vacuum carburetor, Alloy wheel, Fr. disk brake, Vaccum tyre, LED taillight, LED turn light, Alloy rear carrier.

1

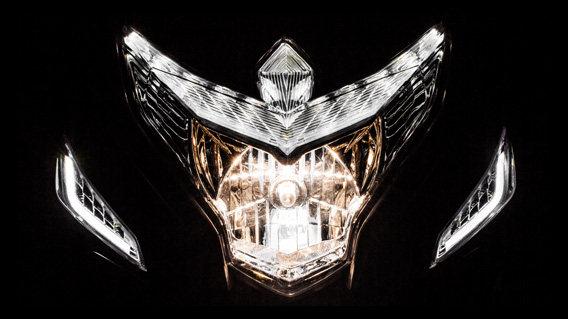

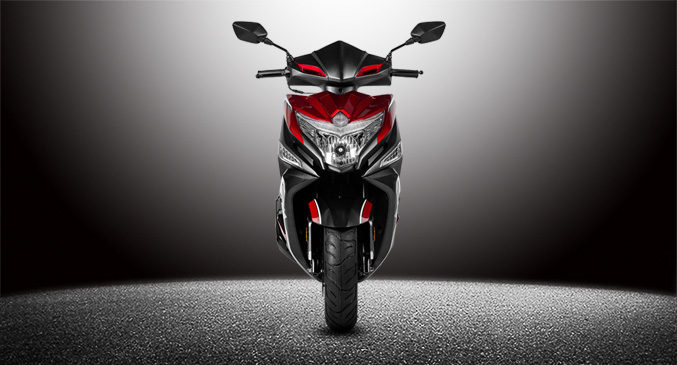

New alien style headlamp, with LED DRL(Daytime Running Light) function, it`s more securely for driving, and more magnificent for visual enjoyment at night.




2

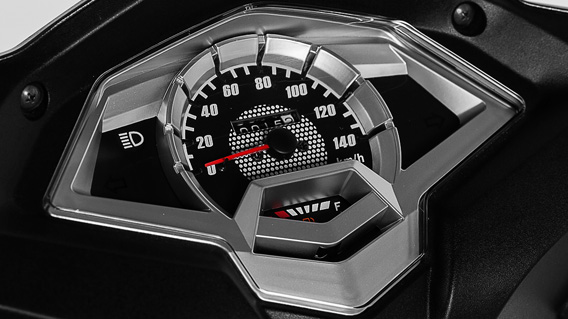

Rugged and compact meter design with lavishly metallic appearance, clear riding guidance.




3

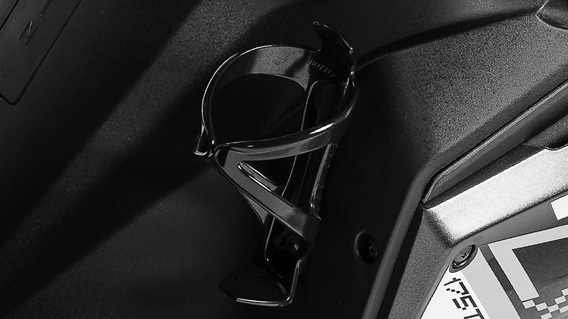

Humanized design--Simple cup bracket, making riding easy and happy.




4

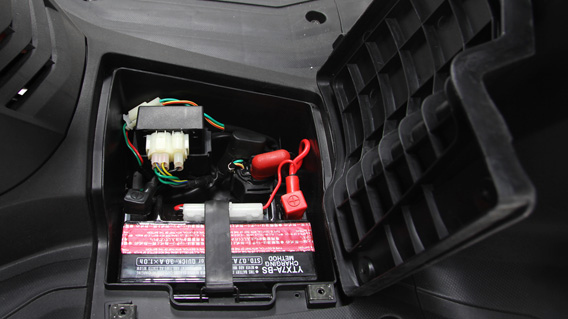

Centralized design for electrical parts against dust and water, make easier maintenance.
5

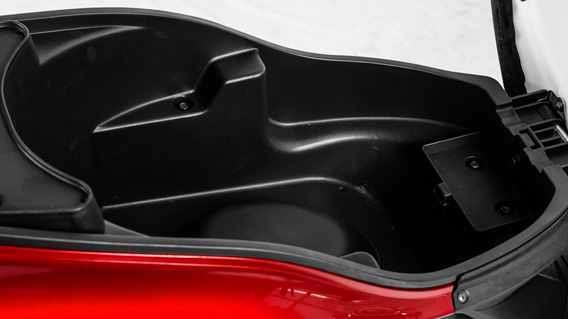

Huge storage box  for  various store needs.
6

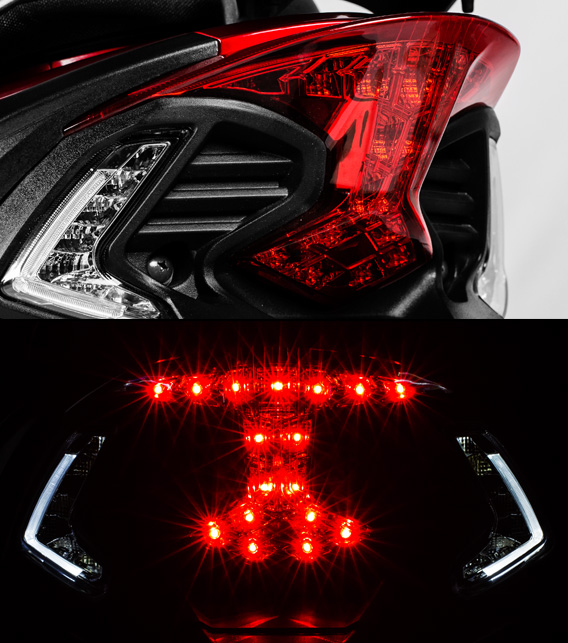

LED taillight of new style, sharp looking, striking light, longer lifespan and lower energy consumption.




7

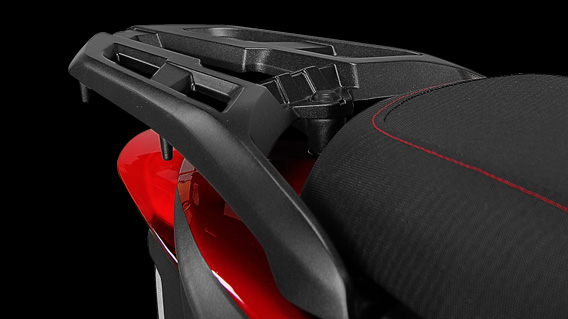

High-intensity aluminum-alloy rear carrier：excellent carrying capability and fashionable appearance.




8

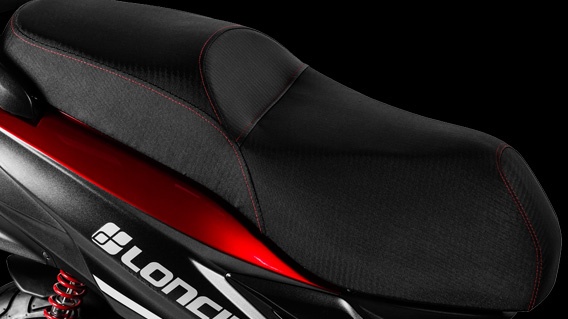

High quality, high resilience, enlarged and thickened seat cushion, making it more smooth for riding.




General information

Model

LX175T-5

Year

2015



Engine and transmission

Engine type

Single cylinder, 4-stroke, air-cooled

Displacement

168.9

Bore x stroke

61×57.8

Compression ratio

9.2:1

Maximum power

9.4 hp (7 kw) / 6500 rpm

Maximum torque

11 N.m / 5000 rpm

Transmission system

CVT

Final transmission

Belt

Ignition system

C.D.I

Starting method

Electric / Kick

Idle speed

1700±100 rpm



Dimensions and Weight

Overall size (L×W×H)

1920mm×680mm×1170mm

Wheel base

1320 mm

Seat height

775 mm

Ground clearance

125 mm

Dry weight

113 ± 5 kg

Maximum load

150 kg

Fuel tank capacity

7 L



Other

Maximum speed

90 km

Battery

12V 7AH



GALLERY
Video
