LX250-12A CR5
  • Overview
  • Features
  • Technical Details
  • Gallery and Media

Configuration:

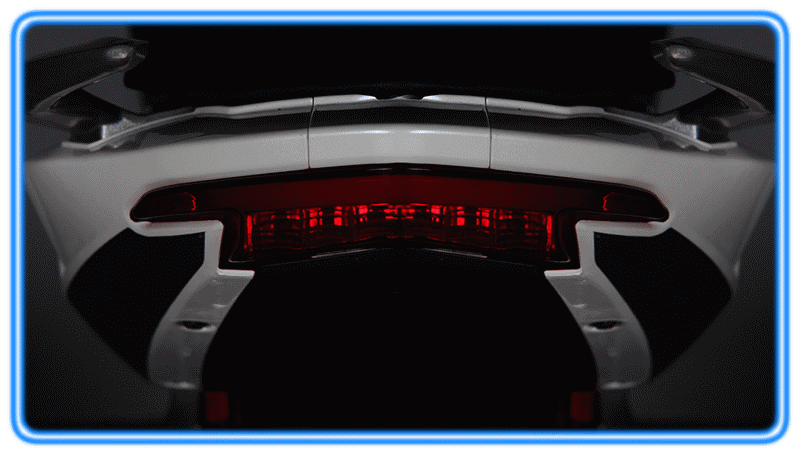

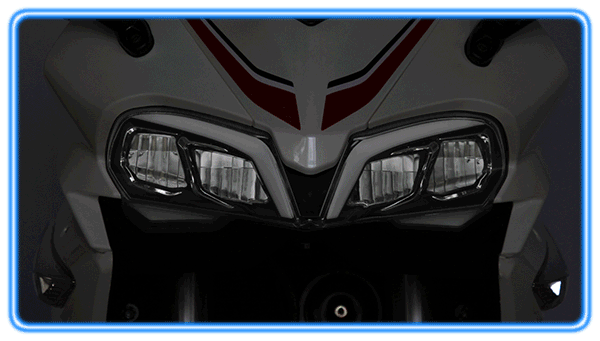

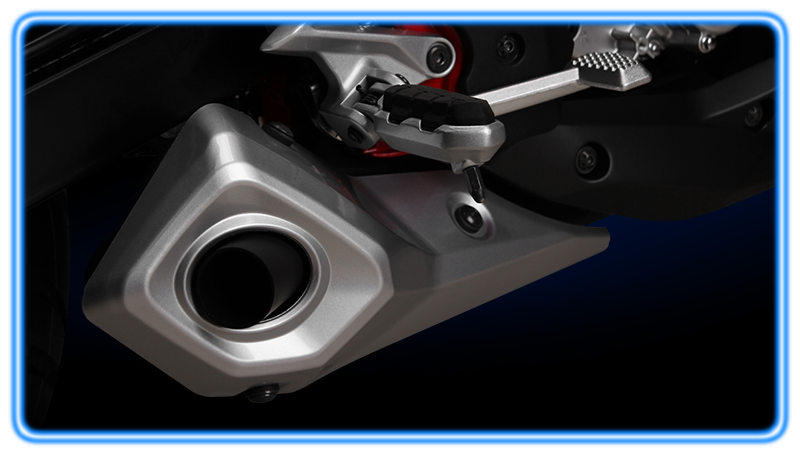

RE180 engine, Electric starter only, Int’6 speed, 18 magneto coils, full wave, D.C, TaiKai vacuum carburetor, Alloy wheel, YUANXING tubeless tyre (Fr. 100/80-17, Rr. 130/70-17), Fr. Floral disk brake, Special headlight with LED decorative light, LED taillight, LED turn light, Digital meter, Fuel tank with flat cap, Centre placed absorber, Alloy main and passenger footrest, Split alloy rear armrest, Painted muffler with plastic decorative cover, Anti-slip seat with good elasticity, Half chain case, Rhombus rear mirror viewer.

General information
Model LX175-21
Year 2014



Engine and transmission
Engine type      Single cylinder, 4 stroke
Displacement  180.08cc
Bore x stroke     63×58mm
Compression ratio 9.2:1
Maximum power      14.1hp(10.5kw)/8500rpm
Maximum torque 13.5N.m/6500rpm
Fuel system Vacuum Carburetor
Fuel control OHC
Ignition system C.D.I
Cooling system Air
Starting method Electric
Gearbox 6-speed
Final drive Chain
Idle speed 1300 rpm



Chassis, suspension, brakes and wheels
Frame type      Steel
Front suspension Telescopic Fork
Rear suspension Single Shock
Front tyre dimensions 100/80-17
Rear tyre dimensions 130/70-17
Front brakes Disc
Rear brakes Drum



Dimensions and Weight
Overall size (L×W×H) 1985mm×810mm×1080mm
Wheel base 1335 mm
Seat height 780 mm
Ground clearance 180 mm
Dry weight 125±5kg
Maximum load 150kg
Fuel tank capacity 12 L



Other
Maximum speed 105 km/h
Battery 12V 7AH
Turn light LED
Taillight LED
Meter LCD Digital
